Chi tiết sản phẩm

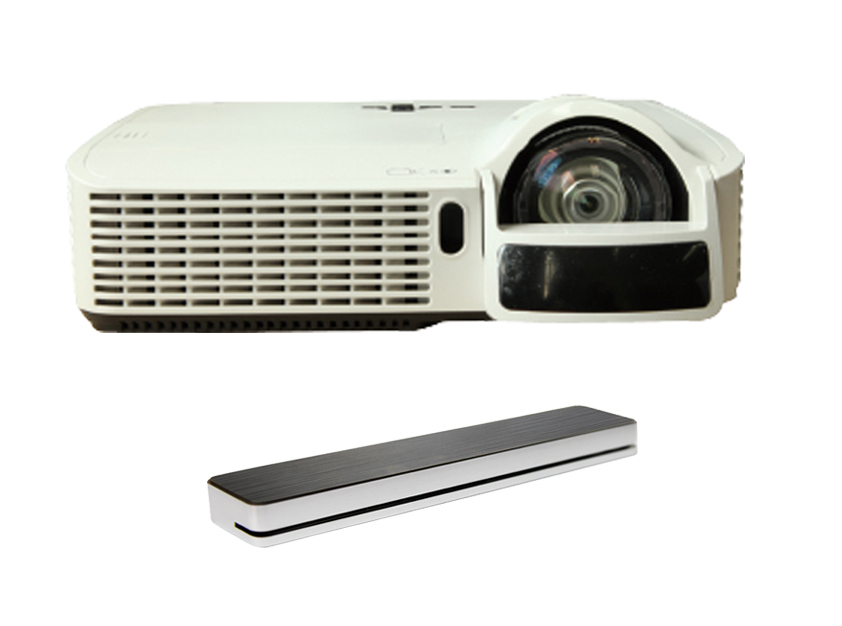

Máy chiếu tương tác viết bằng tay hoặc bằng bút
Mã sản phẩm: DTFP
Giá: 73.000.000 VNĐ
Xuất xứ: Trung Quốc
Finger touch Short Throw Projector
|
|||
|
|
||
Core Module
|
Core Technology
|
DLP
|
|
Projector System
|
0.55’DMD
|
||
Lens
|
Aperture2.6
|
||
Lamp
|
OSRAM Unishape High effective long- life lamp
|
||
Lamp lifetime
|
4000 hours(standard mode)
6000 hours(energy saving)
|
||
Resolution
|
Standard resolution
|
XGA(1024*768)
|
|
Compatible resolution
|
VGA\SVGA\XGA\SXGA\ SXGA+\WXGA\UXGA
|
||
Brightness
|
3000lumen(ISO21118)
|
||
Contrast
|
3000:1
|
||
Evenness
|
95%
|
||
RGB/CMY
|
Six-Axis Color Adjustment
|
||
Color
|
1.07billion
|
||
Weight
|
2.6kg
|
||
Dimension
|
284.0mm x 234.3mm x 81.5 mm
|
||
Projection
|
Front/Rear, Table/Ceiling
|
||
Projected Dimension
|
30”-300”
|
||
Aspect Ratio
|
4:3/ 16:9
|
||
Keystone Correction
|
Vertical Correction Plus or minus 40 degrees
|
||
Scan Frequency
|
Horizon: 31~100KHz; Vertical: 50~120Hz
|
||
Video Format
|
NTSC, NTSC 4.43
|
||
PAL, PAL-N, PAL-M
|
|||
SECAM, HDTV(480i/p, 576p, 720p, 1080i/p), CVBS
|
|||
Port
|
Input
|
2 x VGA port (15-pin D-Sub),
1 x Composite Video port(RCA jack), 1 x S-Video port(Mini- DIN 4pin),
1 x Audio(3.5mm Stereo mini port), HDMI x 1(HD port)
|
|
Output
|
1 x VGA Computer
signal synchronization output port
|
||
1 x Audio(3.5mm Stereo mini port)
|
|||
Console Port
|
1 x Mini USB; 1 x RS-232
|
||
Amplifier
|
Built-in 2W amplifier
|
||
Noise
|
Normal mode32dB, Energy saving model 30dB
|
||
Power
|
AC 100-240 V, 50 – 60 Hz, 3.2A
|
||
Consumption
|
320W(maximum)
|
||
Temperature
|
Working: temperature 0’C-40’C Humidity10%-80%
|
||
Store: temperature-20’C-60’C Humidity30%-85%
|
Technical Parameter Of Interactive Module:
Finger Touch Interactive Module -- Finger Touch Projector
|
|
Calibration
|
|
Gesture Recognition
|
Single finger is for "Write", Two fingers for "move", "zoom in or out" and "scroll bar", Palm for "Erase",Palm stay 2s for Spot, Palm two clicks for back to desktop.
|
Multi-touch
|
Ten points touch, write and eraser can do together.
|
Latency
|
<30ms
|
Filter
|
Software auto-control, enhance stability.
|
Minimum Active Size
|
40 inch
|
Max Active Size
|
120inch( no sunshine room);100inch( sunshine room)
|
Technology
|
Laser Image Calibration Technology
|
Positional Accuracy
|
±1 Pixel (Resolution: 4096*4096)
|
Aspect Ratio
|
4:3;16:9;16:10
|
Projector ratio
|
|
Laser Beam
|
Short throw/ Long throw: 3units; Ultra short throw: 4units.
|
Wave of the laser
|
808nm
|
Power
|
5w
|
Power of Laser Beam
|
150mW/unit *3
|
Power requirements
|
5V/1.5A
|
Signal refresh rate
|
120fps.
|
Connect
|
The sensor and computer are connected by USB Cable; Emitter and
Sensor are wireless; Emitter just need power.
|
Weight
|
0.5kg
|
OS Requirement
|
Windows XP, Vista, Windows 7, Windows 8
|
Software
|
Calibration software(driver) and GLboard(education software)
|
Certification
|
CE, FCC
|
Warranty
|
2-year
|
Package
|
1. Sensor 2.Emitter 3.Mounts 4.USB cable (12m) 5.Pionter 6.Power Adaptor 7. Manual
|
Máy chiếu tương tác bằng tay shortthrow
|
|||
Tính năng sản phẩm
|
Công nghệ |
DLP
|
|
Bộ sử lý màu chip
|
0.55’DMD
|
||
Ống kính |
Aperture2.6
|
||
Đèn |
OSRAM Unishape High effective long- life lamp
|
||
Tuổi thọ bóng đèn |
4000 hours(standard mode)
6000 hours(energy saving)
|
||
Độ phân giải | Độ phân giải chuẩn |
XGA(1024*768)
|
|
Độ phân giải tương thích |
VGA\SVGA\XGA\SXGA\ SXGA+\WXGA\UXGA
|
||
Độ sáng |
3000lumen(ISO21118)
|
||
Độ tương phản |
3000:1
|
||
tính đồng nhất |
95%
|
||
RGB/CMY
|
Six-Axis Color Adjustment
|
||
Màu sắc
|
1.07billion
|
||
Trong lượng |
2.6kg
|
||
Kích thước |
284.0mm x 234.3mm x 81.5 mm
|
||
Kiểu cách chiếu
|
Front/Rear, Table/Ceiling
|
||
Kích thước chiếu
|
30”-300”
|
||
Tỷ lệ khung hình |
4:3/ 16:9
|
||
Hiệu chỉnh keystone
|
Vertical Correction Plus or minus 40 degrees
|
||
Tốc độ quét hình |
Horizon: 31~100KHz; Vertical: 50~120Hz
|
||
Video
|
NTSC, NTSC 4.43
|
||
PAL, PAL-N, PAL-M
|
|||
SECAM, HDTV(480i/p, 576p, 720p, 1080i/p), CVBS
|
|||
Cổng kết nối
|
Cổng kết nối tín hiệu đầu vào |
2 x VGA port (15-pin D-Sub),
1 x Composite Video port(RCA jack), 1 x S-Video port(Mini- DIN 4pin),
1 x Audio(3.5mm Stereo mini port), HDMI x 1(HD port)
|
|
Cổng kết nối tín hiều xuất đầu ra |
1 x VGA Computer
signal synchronization output port
|
||
1 x Audio(3.5mm Stereo mini port)
|
|||
Console Port
|
1 x Mini USB; 1 x RS-232
|
||
Âm thanh
|
tích hợp loa 2W amplifier
|
||
Độ ồn
|
Normal mode32dB, Energy saving model 30dB
|
||
Điện cung cấp
|
AC 100-240 V, 50 – 60 Hz, 3.2A
|
||
Điện năng tiêu thụ
|
320W(maximum)
|
||
Nhiệt độ hoạt động
|
Working: temperature 0’C-40’C Humidity10%-80%
|
||
Store: temperature-20’C-60’C Humidity30%-85%
|
Technical Parameter Of Interactive Module:
Tính năng tương tác ( tương tác bằng tay) Finger Touch Projector
|
|
Chế độ định vị
|
|
Tính năng thao tác
|
Viết xoá, di chuyển đối tượng bằng tay hoặc bằng viết) Single finger is for "Write", Two fingers for "move", "zoom in or out" and "scroll bar", Palm for "Erase",Palm stay 2s for Spot, Palm two clicks for back to desktop.
|
Chế độ tương tác đa điểm |
Tương tác 10 người viết cùng một lúc (Ten points touch, write and eraser can do together.)
|
Tốc độ
|
<30ms
|
Bộ lọc
|
Software auto-control, enhance stability.
|
Minimum Active Size
|
40 inch
|
Max Active Size
|
120inch( no sunshine room);100inch( sunshine room)
|
Công nghệ
|
Laser Image Calibration Technology
|
Độ phân giải |
±1 Pixel (Resolution: 4096*4096)
|
Tỷ lệ chiếu
|
4:3;16:9;16:10
|
|
|
Laser Beam
|
Short throw/ Long throw: 3units; Ultra short throw: 4units.
|
Tốc độ nhạy
|
808nm
|
5w
|
|
150mW/unit *3
|
|
Điện năng tiêu thụ |
5V/1.5A
|
Tốc độ sử lý tín hiệu
|
120fps.
|
Kết nối |
The sensor and computer are connected by USB Cable; Emitter and
Sensor are wireless; Emitter just need power.
|
Trong lượng
|
0.5kg
|
Hệ điều hành
|
Windows XP, Vista, Windows 7, Windows 8
|
Phần mềm |
Calibration software(driver) and GLboard(education software)
|
Giấy chứng nhận
|
CE, FCC
|
Chế độ bảo hành |
2-year
|
Phụ kiện đi kèm |
1. Sensor 2.Emitter 3.Mounts 4.USB cable (12m) 5.Pionter 6.Power Adaptor 7. Manual
|
